Specification
| model | ML-100 | ML-200 | ML-300 | ML-400 |
|---|---|---|---|---|
| Material width(mm) | 100 | 200 | 300 | 400 |
| Material thickness(mm) | 0.1-0.6 | 0.1-0.6 | 0.1-0.6 | 0.1-0.6 |
| Feed speed(m/min) | 16 | 16 | 16 | 16 |
Back to Equipment
Precise Straightener
ML Series
Precision straightener machine is a type of industrial machine used to straighten and flatten metal sheets or strips. It is commonly used in stamping operations for electrical components, such as mobile phone parts, PC accessories, and other digital parts that require a high degree of accuracy and precision.
Parameters
Key technical summary.
- Model range
- ML-100 to ML-400
- Material thickness
- 0.1-0.6mm
- Speed
- 16m/min
- Work rollers
- Up9/Down10
Features
Production advantages.
The precision straightener machine operates by feeding the metal sheet or strip through a series of rollers that apply pressure and force to flatten the material. Straightener machines typically consist of two sections: a rough straightener section and a precision straightener section. The rough straightener section has larger rollers that perform the initial straightening process. The precision straightener section has smaller rollers that refine the straightening process, improving the precision and accuracy of the flattened material.
Specifications
Detailed technical tables.

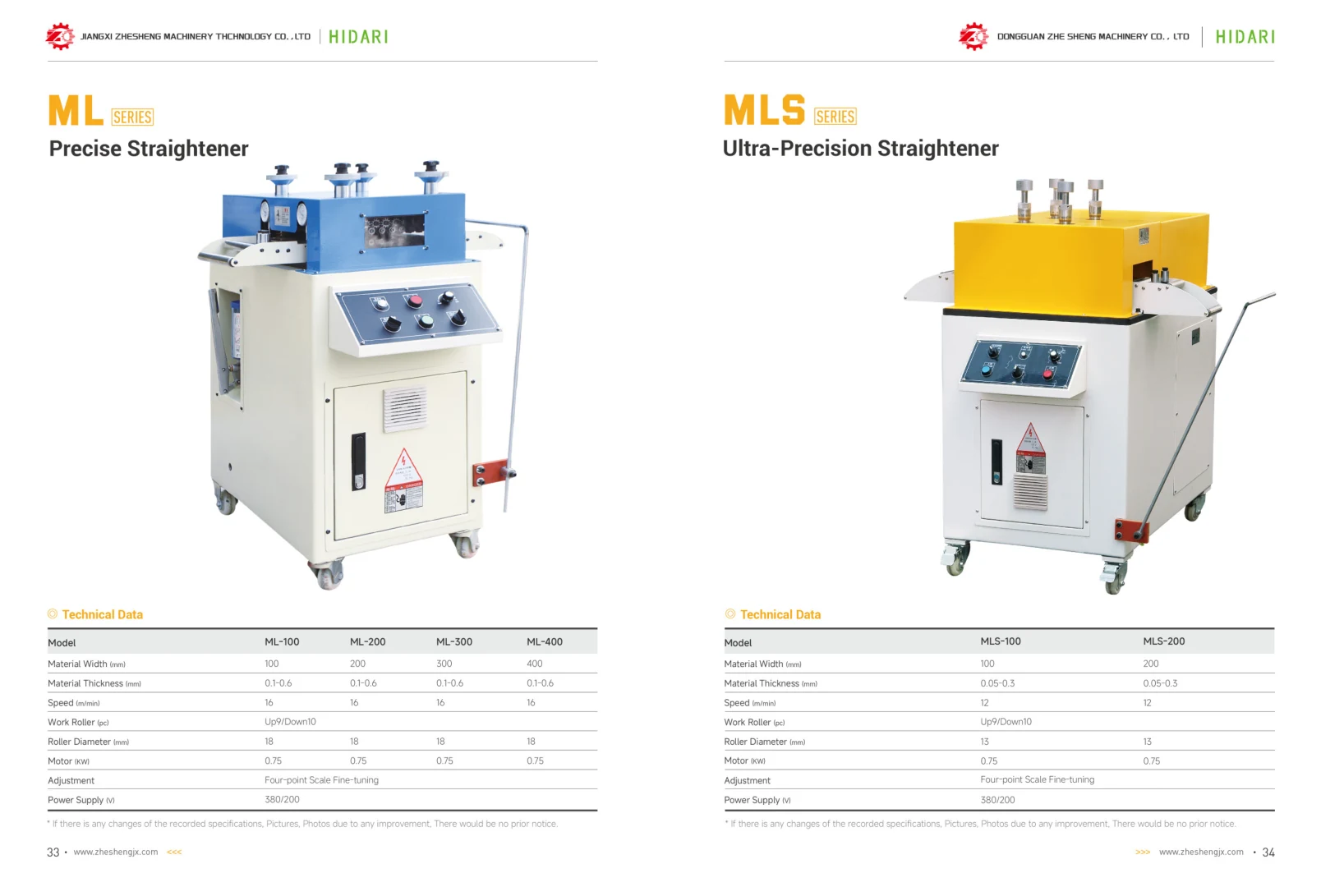

Catalog Sheet
Reference image from the product catalog.
