3 in 1 Straightener Feeder

NCLF Series

3 in 1 combined Decoiler straightener Feeder for stamping metal parts, Sheet automatic 3 in 1 Decoiler and Straightener, 3 in 1 Coil Processing Unit, Servo Coil Handling Straightener Feeder 3 in 1 Machine.

Ask for this model Browse all products

Parameters

Key technical summary.

Function: Uncoiling, leveling, servo feeding
Structure: Compact 3-in-1 layout
Best for: Medium and heavy stamping lines

Features

Production advantages.

3 in 1 model is made by uncoiler, straightener and feeder; This equipment is for high strength coil or very hard coil.The overall structure is compact, shortening the factory of the area. All feeding parameter setting and control are concentrated in one operation screen and manual box, stable performance, accurate feeding, and high leveling, saving manpower space, high-automatic feeding equipment around the press machine

Specifications

Detailed technical tables.

Specification

model	NCLF-600H	NCLF-800H	NCLF-1000H	NCLF-1200H	NCLF-1400H	NCLF-1600H	NCLF-2000H
Material width(mm)	100-600	150-800	150-1000	150-1200	150-1400	150-1600	150-2000
Material thickness(mm)	0.6-6.0	0.6-6.0	0.6-6.0	0.6-6.0	0.6-6.0	0.6-6.0	0.6-6.0
Coil weight Max.(mm)	5000	8000	8000	10000	10000	15000	20000
Coil I.D Max(mm)	1400	1400	1400	1400	1400	1600	1600
Coil O.D Max(mm)	480-520	480-520	480-520	480-520	480-520	480-520	480-520
Feed length(mm)	500	500	500	500	500	500	500
Feed speed(m/min)	22	22	22	22	22	22	22

Straighten capability

model		NCLF-800H	NCLF-1000H	NCLF-1200H	NCLF-1400H	NCLF-1600H	NCLF-2000H
Roller length(mm)		820	1020	1220	1420	1620	2020
Material thickness(mm)	0.6-1.6	800	1000	1200	1400	1600	2000
Material thickness(mm)	2.5	800	1000	1200	1400	1600	2000
Material thickness(mm)	3.2	771	886	1142	1100	1210	1325
Material thickness(mm)	4.5	489	619	862	950	938	1052
Material thickness(mm)	6.0	362	442	685	695	710	750
The above figures are for the material have yield strength of 306N/mm²

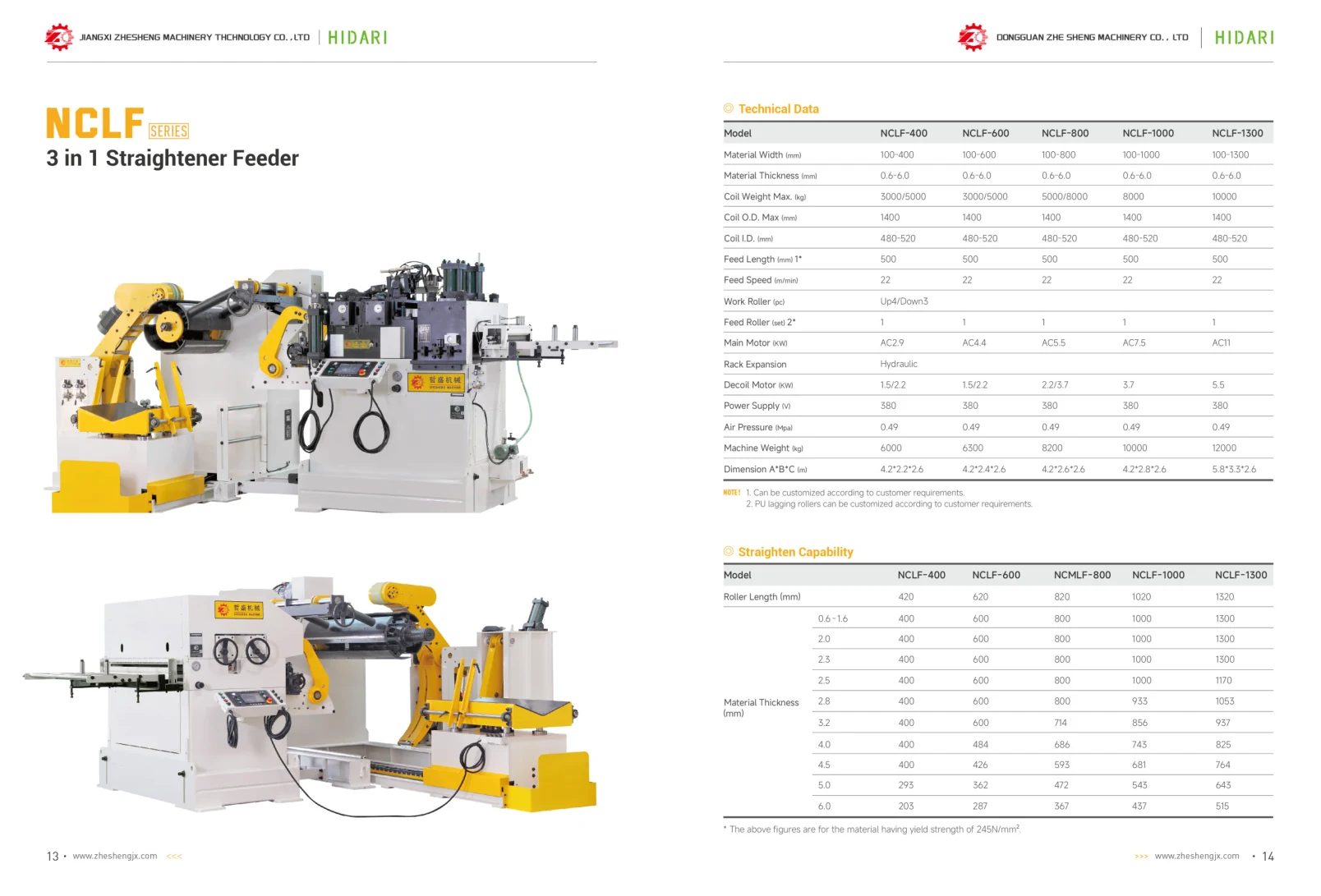

Catalog Sheet
