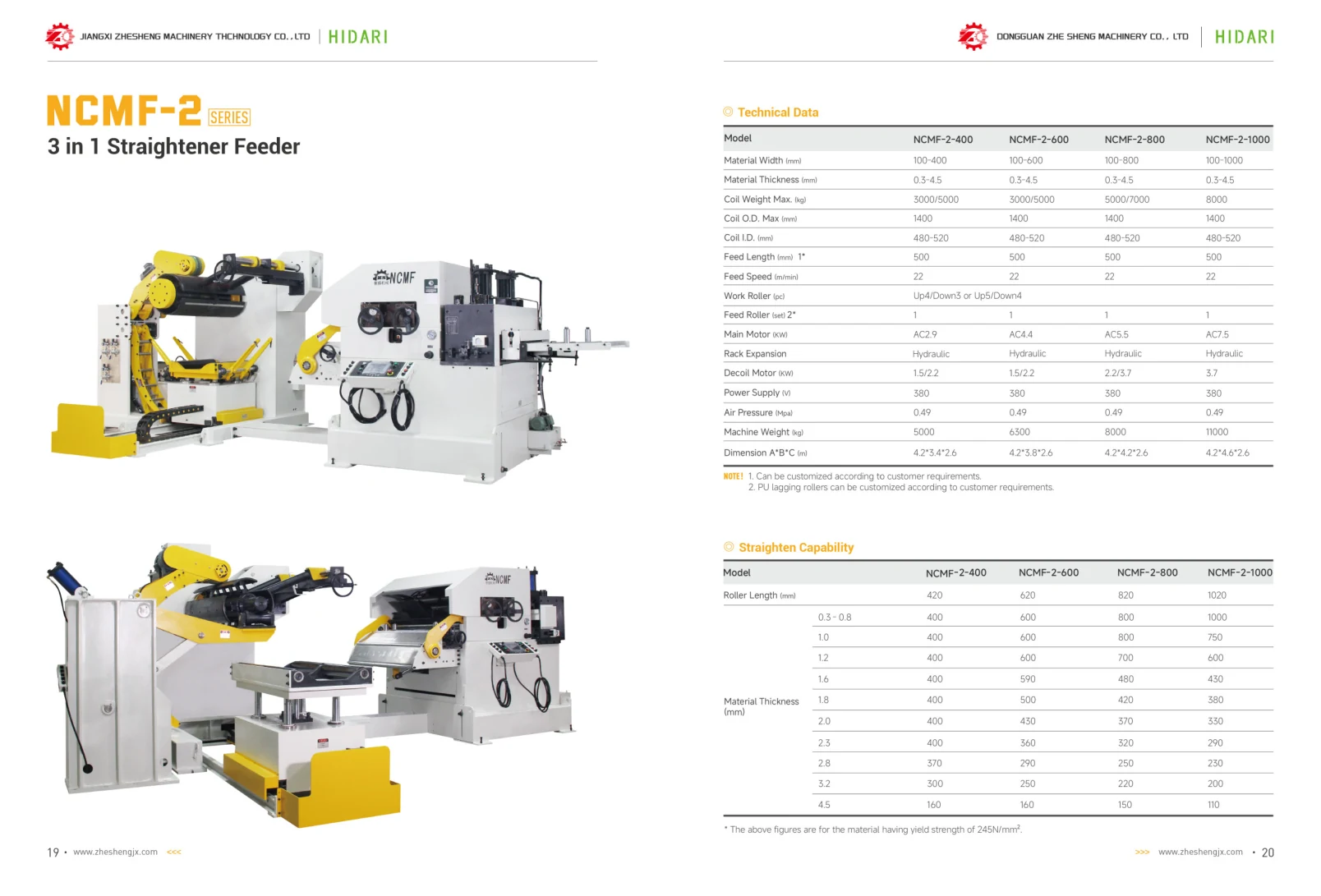

3 in 1 Straightener Feeder
3 in 1 combined Decoiler straightener Feeder for stamping metal parts, Sheet automatic 3 in 1 Decoiler and Straightener, 3 in 1 Coil Processing Unit, Servo Coil Handling Straightener Feeder 3 in 1 Machine.
3 in 1 model is made by uncoiler, straightener and feeder; This equipment is for thing sheet metal press and the equipment occupies a small area.The overall structure is compact, shortening the factory of the area. All feeding parameter setting and control are concentrated in one operation screen and manual box, stable performance, accurate feeding, and high leveling, saving manpower space, high-automatic feeding equipment around the press machine
| model | NCMF-2-400 | NCMF-2-600 | NCMF-2-800 | NCMF-2-1000 |
|---|---|---|---|---|
| Material width(mm) | 100-400 | 100-600 | 100-800 | 150-1000 |
| Material thickness(mm) | 0.3-4.5 | 0.3-4.5 | 0.3-4.5 | 0.3-4.5 |
| Coil weight Max.(mm) | 5000 | 5000 | 7000 | 8000 |
| Coil I.D Max(mm) | 1400 | 1400 | 1400 | 1400 |
| Coil O.D Max(mm) | 480-520 | 480-520 | 480-520 | 480-520 |
| Feed length(mm) | 500 | 500 | 500 | 500 |
| Feed speed(m/min) | 22 | 22 | 22 | 22 |
| model | NCMF-2-400 | NCMF-2-600 | NCMF-2-800 | NCMF-2-1000 | |
|---|---|---|---|---|---|
| Roller length(mm) | 420 | 620 | 820 | 1020 | |
| Material thickness(mm) | 0.3-0.8 | 400 | 600 | 800 | 1000 |
| Material thickness(mm) | 1.0 | 400 | 600 | 800 | 750 |
| Material thickness(mm) | 1.6 | 400 | 590 | 480 | 430 |
| Material thickness(mm) | 2.0 | 400 | 470 | 370 | 330 |
| Material thickness(mm) | 2.8 | 370 | 290 | 250 | 230 |
| Material thickness(mm) | 4.8 | 160 | 160 | 150 | 110 |
| The above figures are for the material have yield strength of 245N/mm² | |||||
