Specification
| model | NFK-200 | NFK-300 |
|---|---|---|
| Stock width(mm) | 20-200 | 20-300 |
| Stock thickness(mm) | 0.05-2.5 | 0.05-2.5 |
| Pass line(mm) | 70-170 | 70-170 |
| Releasing performance(SPM) | 200 | 200 |
Back to Equipment
NC Roller Feeder
NFK Series
Suitable for feeding processing with different material thickness and length. 2. Suitable for high-speed and long size feeding, improve production capacity and feeding accuracy. 3. Humanized manual mode, simple operation panel, with feeding length and feeding speed key digital code, the operator can be arbitrarily set, fast and accurate, feeding length can be from 0.1mm-9999.99mm. 4. Mechanical relaxation or pneumatic relaxation (accurate relaxation point), can be used for a long time, less failure, long life, automatic selection.
Parameters
Key technical summary.
- Model range
- NFK-200 to NFK-300
- Stock thickness
- 0.05-2.3mm
- Pass line
- 70-170mm
- Release performance
- 200SPM
Features
Production advantages.
The use of high quality, brushless servo motor drive, effectively shorten the distance adjustment and test time. The use of high sensitivity decoder, back insemination is correct, and the feeding accuracy is ensured within +-0.02MM. With the timing belt drive, can eliminate the gear gap, less wear, no noise, no lubrication, safe and environmental protection. The motor built-in device can avoid damage during handling and loading.
Specifications
Detailed technical tables.

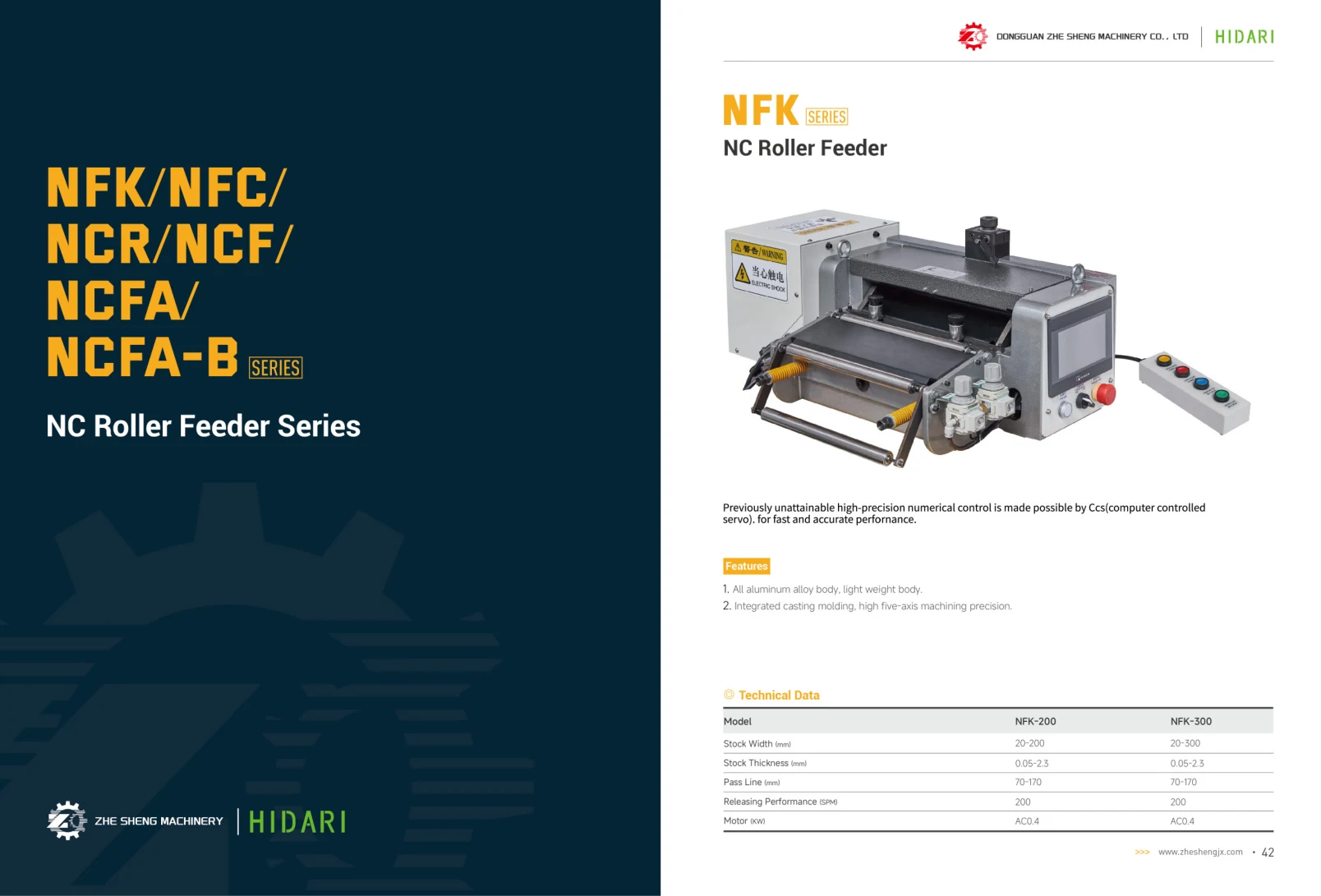

Catalog Sheet
Reference image from the product catalog.
