Uncoiler With Straightener
Decoiler Straightener is a material handling machine that is typically located at the beginning of a process line. Its primary function is to hold and safely pay off or uncoil steel strips while leveling the material. This machine is commonly used in the processing of metal sheets for slitting, roll forming, and stamping pressing.
The Decoiler Straightener is a machine used for material handling that performs two crucial functions, uncoiling steel strips from coils and leveling the material. It's commonly located at the beginning of a process line to hold and safely pay off or uncoil steel strips while straightening them. This machine is usually used in producing finished metal coils used for slitting, rolling, forming, and stamping applications.Decoiler Straightener is an essential machine tool used in modern manufacturing and processing lines for high production efficiency, precision, and reliability.

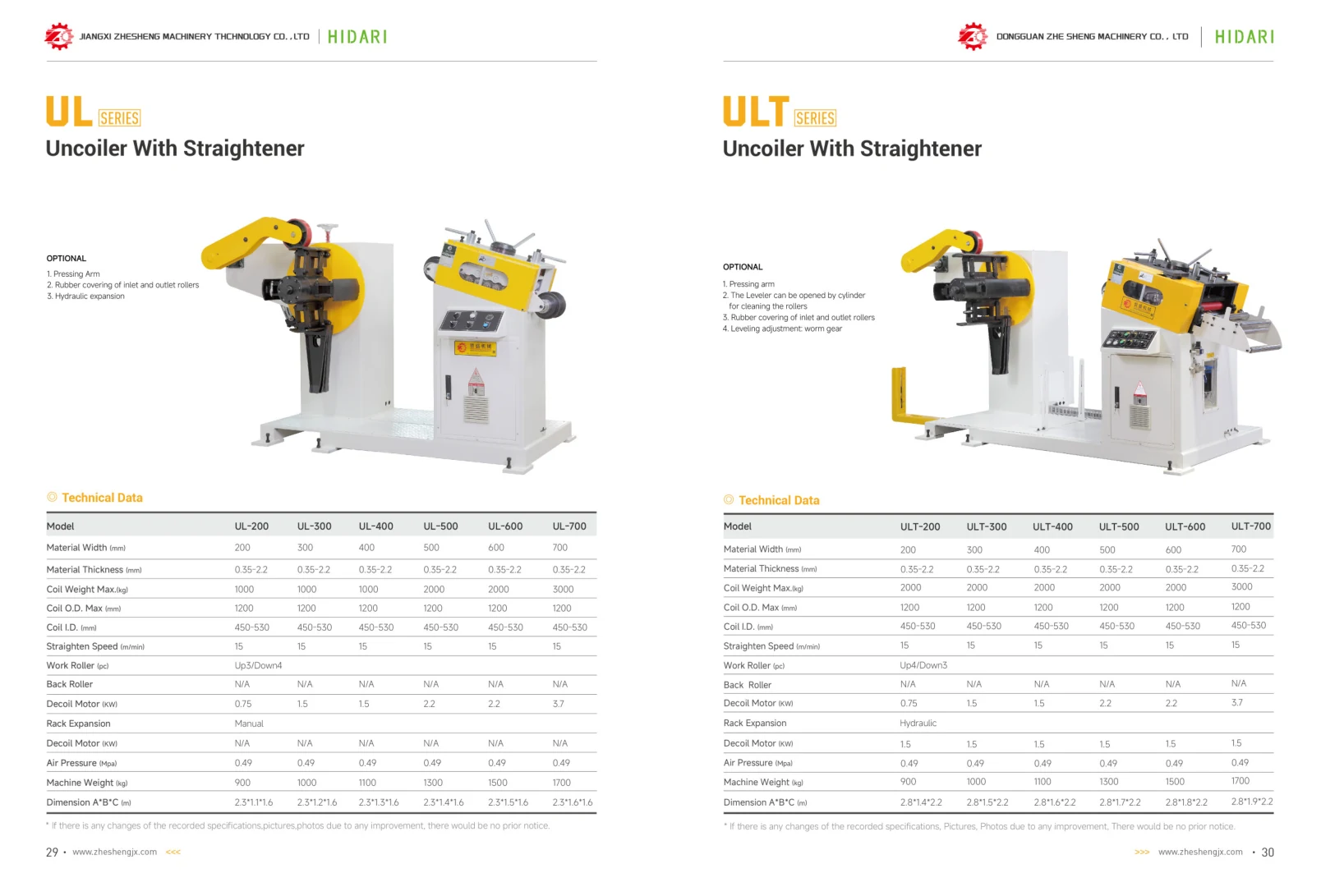

| model | UL-200 | UL-300 | UL-400 | UL-500 | UL-600 | UL-700 |
|---|---|---|---|---|---|---|
| Material width(mm) | 200 | 300 | 400 | 500 | 600 | 700 |
| Material thickness(mm) | 0.35-2.2 | 0.35-2.2 | 0.35-2.2 | 0.35-2.2 | 0.35-2.2 | 0.35-2.2 |
| Coil weight Max.(KG) | 1000 | 1000 | 1000 | 2000 | 2000 | 3000 |
| Coil I.D Max(mm) | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
| Coil O.D Max(mm) | 450-530 | 450-530 | 450-530 | 450-530 | 450-530 | 450-530 |
| Feed speed(m/min) | 15 | 15 | 15 | 15 | 15 | 15 |
